J&M Drive Leads

J&M manufactures a line of spotters and leads for each of the J&M products and for many other diesel, hydraulic and other impact hammers. All leads are available in swinging, sliding and fixed configurations.

Heavy-Duty Box Leads

Engineered for superior strength & deflection properties

  • Heavy wall, high-strength structural box tubing construction provides abrasion resistance and ensures a long rail life.
  • Precision fabricated in production jigs to ensure strict dimensional tolerances and accurate connection alignment on site.
  • Available in 10' increments in swinging, fixed and vertical travel configurations. Custom lengths also available.
  • Rigid bolted connections provide full-moment capability and superior deflection properties.
  • Heavy-duty lead ladders are braced at every yoke to ensure personnel safety.
  • Deep sections accommodates diesel, hydraulic and air/steam hammers.
  • All lead sizes are compatible with comparable size HPSI leads.
  • Full lead bracing allows any batter condition - fore, aft and side.
DESCRIPTION 21" x 8" Leads 27" x 8" Leads 33" x 8" Leads
Basic set average weight available in:
  30' Tapered top
  10', 15' or 20' Intermediates
  10' Stab point bottom		 100 lbs/lf 135 lbs/lf 170 lbs/lf

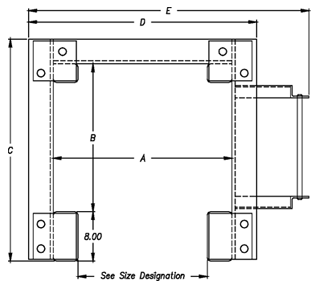

DIMENSIONS
Dimension "A"29"35"41"
Dimension "B"24"28"32"
Dimension "C"36"40"44"
Dimension "D"37"43"49"
Dimension "E"45.5"51.5"57.5"
FIXED LEAD ACCESSORIES
10' Fixed boom point sectionN/a2,350 lb2,700 lb
Universal 2-axis boom point connectorN/a1,200lb1,500 lb
Rooster sheave - 3 lineN/a250 lb250 lb
Headblock - 2 lineN/a1,200 lb1,400 lb
Headblock - 3 lineN/a1,400 lb1,600 lb
Headblock - 2 line plus side auger armN/a1,800 lb2,100 lb
Side mounted auger trackN/a35 lbs/lf35 lbs/lf
VERTICAL TRAVEL ACCESSORIES
10' sliding track w/ clamp plates & boltsN/a675 lb890 lb
Sliding box @ boom point connectorN/a900 lb1,150 lb
Vertical travel sheave box (3 sheaves)N/a500 lb700 lb
Sliding box @ spotterN/a370 lb450 lb

OTHER LEAD ACCESSORIES ALSO AVAILABLE
Custom designed boom point connectors (2-axis or 3-axis) to fit any crane.
Manual or hydraulic pile gates or hydraulic pile monkeys.
APPLICATION NOTES
Never erect leads without first confirming both the structural integrity of the leads and the structural adequacy of the leads to handle the intended application. Lead failure can result in death and/or destruction of property.

Spotters

Model 100 Spotter - The J&M Hydraulic spotter is light-duty and provides a full 21 feet of movement for fore-aft batters up to 1:3 plus 6 feet side-to-side movement for plumbing piles. Standard attachments include rear universal pad-eyes with pins, front lead connector plate, hydraulic control valve and 15 feet hydraulic hose connecting spotter to valve. Approximate weight is 1 ½ tons or 3000 lbs. Hydraulic requirements are 10-20 gpm at 1500 psi.

Model 150 Spotter - The J&M medium-duty hydraulic spotter provides 20 feet of movement for for-aft batters up to 1:3, plus 30 degrees side-to-side movement from center for side batters up to 1:4. Standard attachments include rear universal pad-eyes with pins, front lead connector plate, hydraulic control valve and 15 feet hydraulic hose connecting spotter to valve. Approximate weight is 1 ½ tons or 3000 lbs. Hydraulic requirements are 10-20 gpm at 1500 psi. Optional 30 degree front lead rotator is available.

Power Units

Model P20 - powered by a 20HP, three-cylinder, water-cooled Lombardini diesel engine, this unit provides 12 gpm at 2500 psi to power any J&M spotter. 38"Lx54"Wx34"H. Weight 1533 lbs (695 kg).

Model P28 - powered by a 28HP, four-cylinder, water-cooled Lombardini diesel engine, this unit provides 16 gpm at 2500 psi to power any J&M spotter. 38"Lx54"Wx34"H. Weight 1533 lbs (695 kg).

All three spotter power units may also be used to power hydraulic start set-ups for J&M diesel hammers.

J&M Lead Spotters



If you cannot find the information you need, please call J&M or send us an email at:
